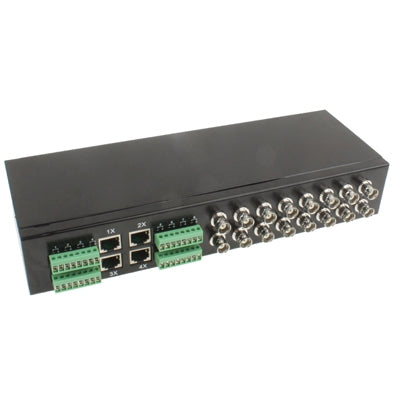

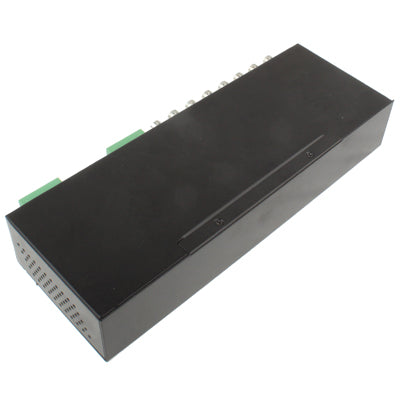

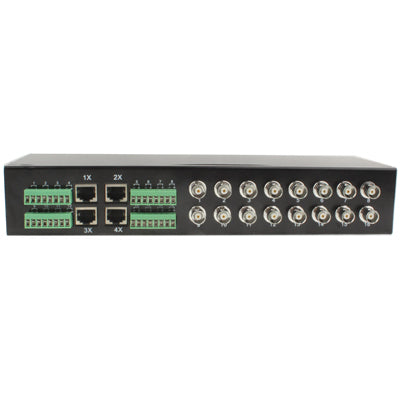

16CH Passive UTP Video Transceiver Rack Mount Style for CCTV
$91.86
Sale price
$91.86
Regular price
Skip to product information
Product Details:
1) 16ch passive video receiver, metal case
2) Video transmission via UTP CAT5 cable.
3) 10-20% wire costs saved.
4) Full-motion CCTV Video at distances up to 330m.
5) Outstanding interference rejection and transient protection
6) Up to 1500m with any active UTP video receiver
7) No power required
Technical Specifications:
1) Frequency response: DC-8MHz
2) CMRR (Common Mode Rejection Ratio): 60dB
3) Impedance: BNC: 75Ω; RJ45: 100Ω
4) Working temperature: -10°C ~ 70°C
5) Storage temperature: -30°C ~ 70°C
6) Applicable to NTSC, PAL, SECAM and CCIR systems
7) Characteristic impedance: 100 Ω ± 20 Ω
8) DC loop resistance:18 Ω/100m
9) Differential capacitance:62pf/m (Maximum)
10) Size: 28.5x11.5x5cm
16CH Passive UTP Video Transceiver Rack Mount Style for CCTV
$91.86
Sale price
$91.86
Regular price
1) 16ch passive video receiver, metal case
2) Video transmission via UTP CAT5 cable.
3) 10-20% wire costs saved.
4) Full-motion CCTV Video at distances up to 330m.
5) Outstanding interference rejection and transient protection
6) Up to 1500m with any active UTP video receiver
7) No power required
Technical Specifications:
1) Frequency response: DC-8MHz
2) CMRR (Common Mode Rejection Ratio): 60dB
3) Impedance: BNC: 75Ω; RJ45: 100Ω
4) Working temperature: -10°C ~ 70°C
5) Storage temperature: -30°C ~ 70°C
6) Applicable to NTSC, PAL, SECAM and CCIR systems
7) Characteristic impedance: 100 Ω ± 20 Ω
8) DC loop resistance:18 Ω/100m
9) Differential capacitance:62pf/m (Maximum)
10) Size: 28.5x11.5x5cm
