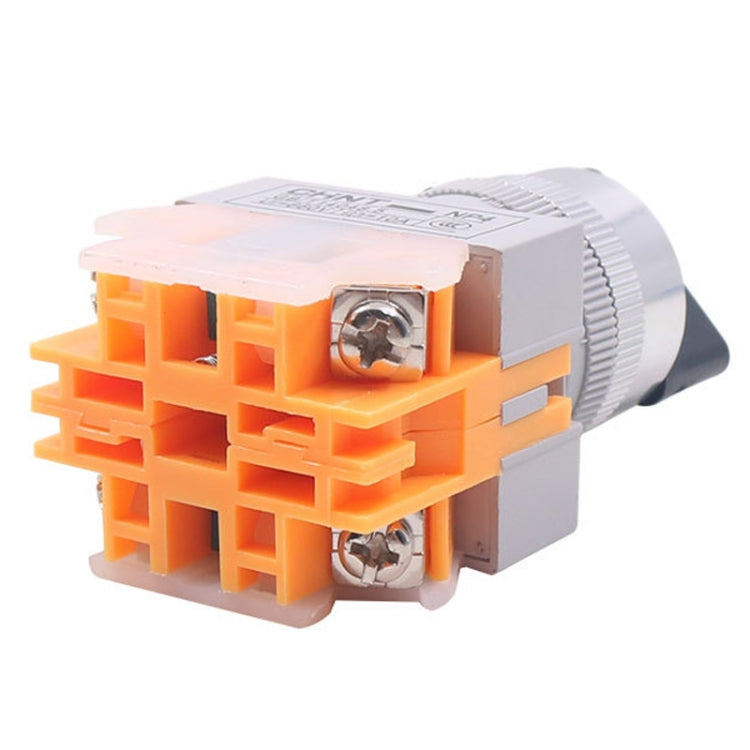

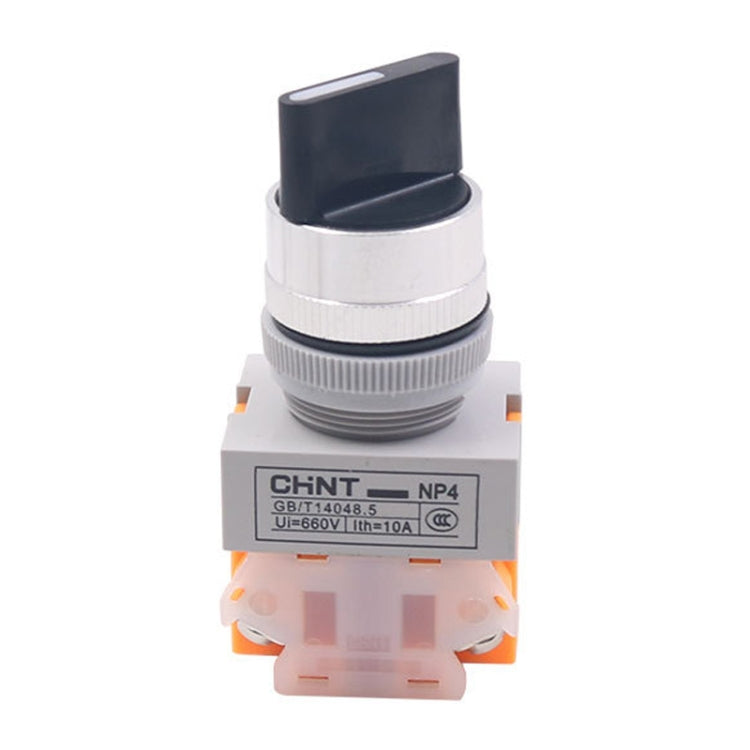

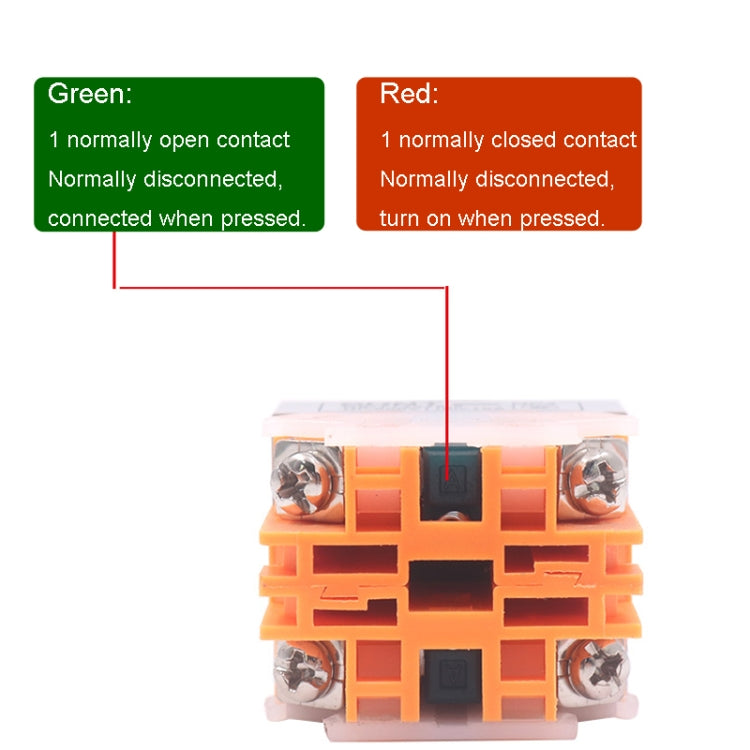

CHNT NP4-20X/31 Rotary Button 3-Position Self-Locking Transfer Switch Contacts 2 Normally Open
$6.12
Sale price
$6.12
Regular price
Skip to product information

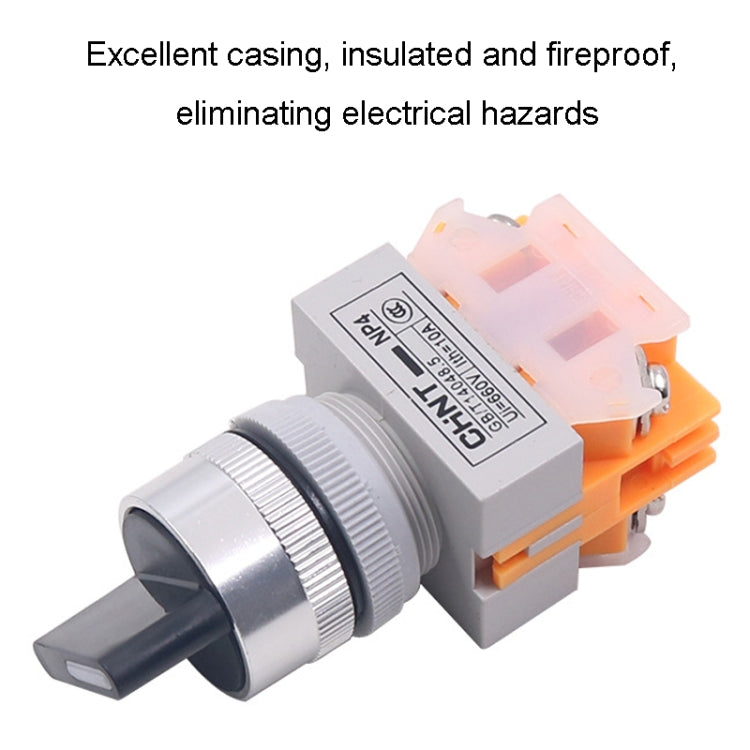

1. Selection of shell materials, insulation and fire prevention, to eliminate hidden dangers of electricity, impact resistance, oxidation resistance

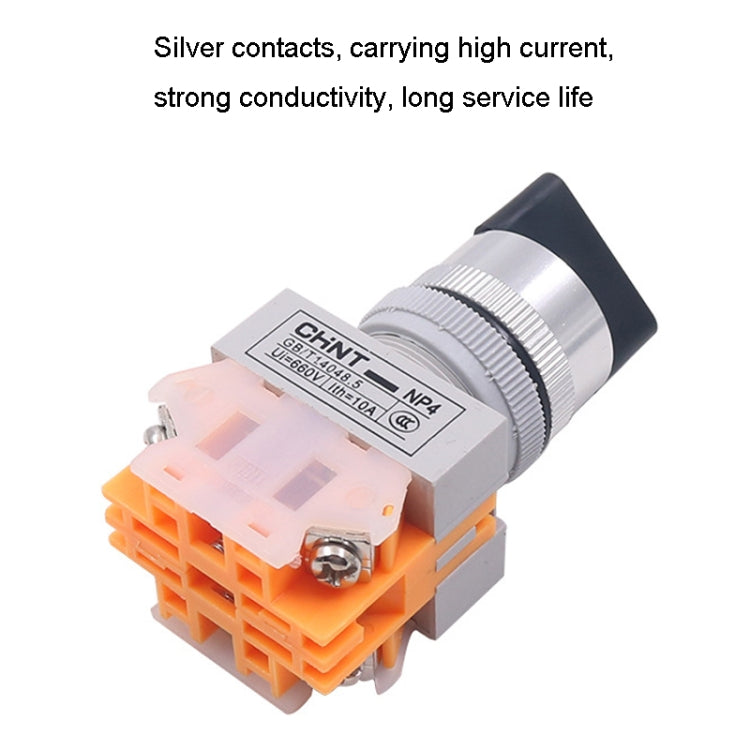

2. Silver contacts, carrying high current, strong conductivity, long service life
3. Simple design, flexible rotation, simple design of the operating rod, do not need to use force to turn, more humanized design
4. Scope of application: NP4 series buttons are suitable for AC 50Hz or 60Hz, voltage up to 380V DC operating voltage up to 220V circuit control system; as electromagnetic starter, contactors, relays and other electrical circuit control; with indicator buttons are also suitable for light signaling occasions; in line with the standard GB 14048.5
5. Current: 10A, rated voltage: below 220V
6. Gear: 3 gears self-locking

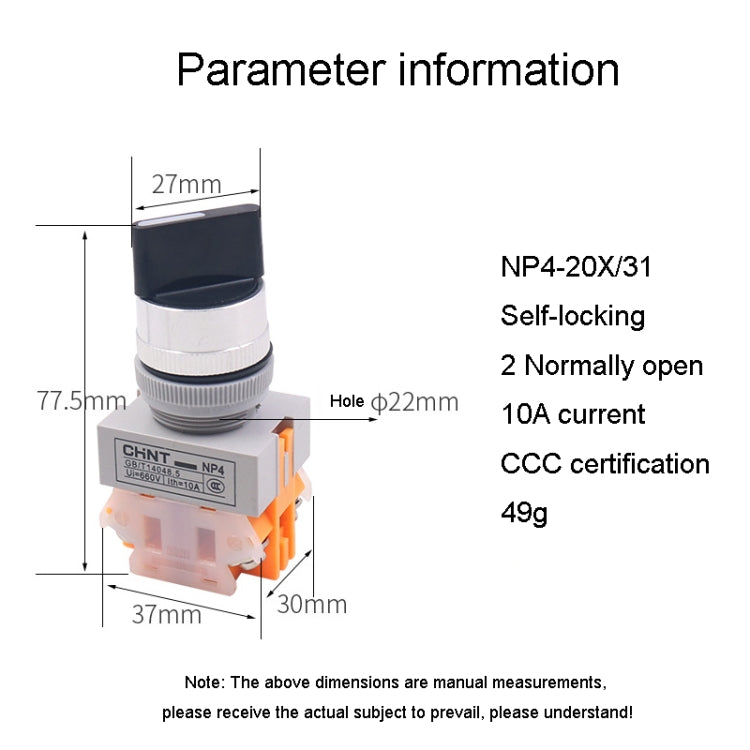

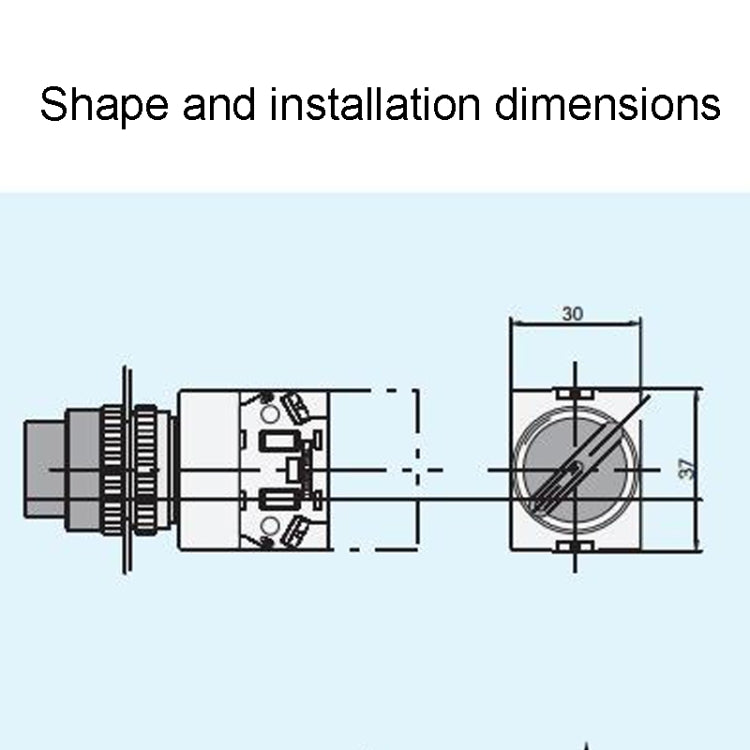

7. Open hole size: about 22mm
8. Weight: about 49g
